SUPERIOR SOUND QUALITY

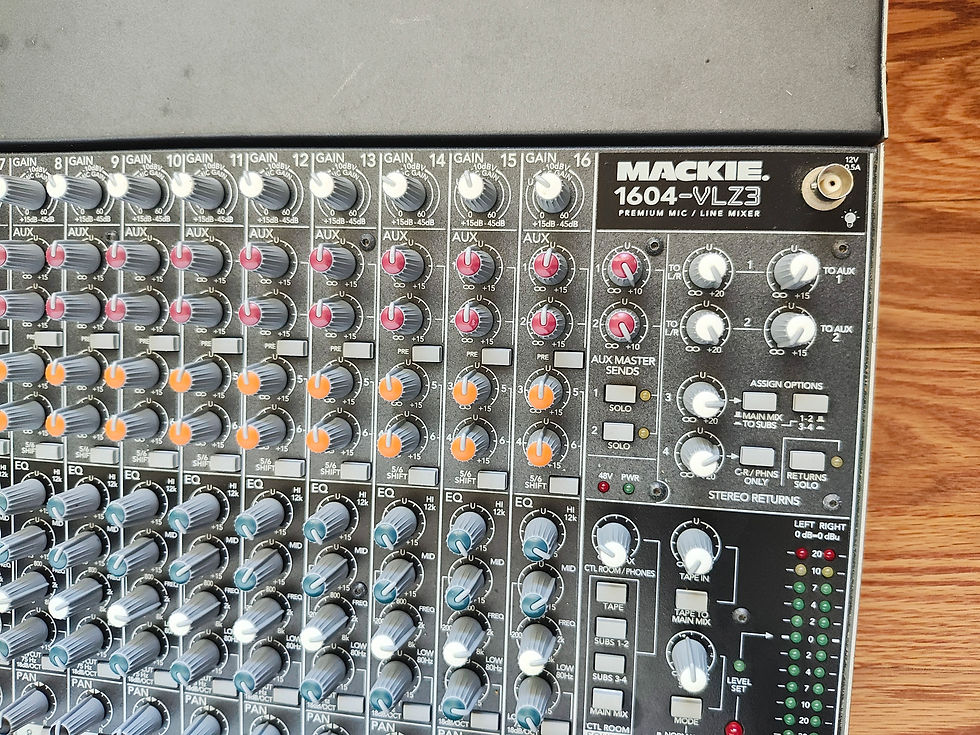

Above all, the 1604-VLZ3 offers superb sound quality, wide dynamic range and headroom and low noise, so you can create professional quality recordings and/or broadcast-quality soundtracks. Whether you need a high-quality 16-channel mixer for the stage, the studio or even the road, you won't find a a more perfect one than the 1604-VLZ3.

New, ultra-low noise VLZ3 design with highest possible headroom

16, studio-grade XDR2 Extended Dynamic Range mic preamps with:

- Ultra-wide 60dB gain range

- 130dB dynamic range

- +22dBu line input handling

- Extended low frequency response

- Distortion under 0.0007% (20Hz - 20kHz)

- Phantom power for studio condenser mics

16, high-headroom line inputs, 16 channel inserts

Advanced DC pulse transformer RF rejection

60 mm, long-wearing, logarithmic-taper faders

4 Aux sends, level, pan, -20dB/Solo and Overload/Mute_LED's on each channel

4 stereo Aux returns, 8 Direct outs, 4 Group/Bus outputs

3-band Active EQ with sweepable midrange

18dB/oct. 75Hz Lo-Cut filter

Control Room/Phones multi-input source matrix

Balanced 1/4" inputs and outputs (except inserts)

Rack-mountable design with three physical configurations via rotating I/O pod

Sealed rotary controls to resist dust and grime

New Multi-Voltage power supply for worldwide use

Rugged steel chassis
